Manufacturer:
KITT
Product code :
COCBRRVL322GS
details
CBRRVL322GS, TLRRVL322, HLRRVL322OE
Intro
This Facelift conversion Autobiography Design body kit is meant to retrofit your Range Rover Vogue giving a surprising fresh and noble look.
Specially designed by KITT to convert from 2002-2010 models to 2010+ Facelift model.
Suitable for
Land Range Rover Vogue III L322 (2002-2005) *Requiers aditional modifications & parts
Land Range Rover Vogue III L322 (2006-2009) *Requiers aditional parts
Land Range Rover Vogue III L322 Facelift (2010-2012)
* only for Left Hand Drive (LHD)
Not suitable for
Land Range Rover Vogue L322 with electric running boards
Land Range Rover Vogue L322 Equipped with AFS
Land Range Rover Vogue L322 Right Hand Drive (RHD)
Land Range Rover Vogue IV R405 (2013-up)
Description
Autobiography Design Body Kit
Front Bumper Autobiography Design equipped with front grille, license plate support and fog lamps cases.

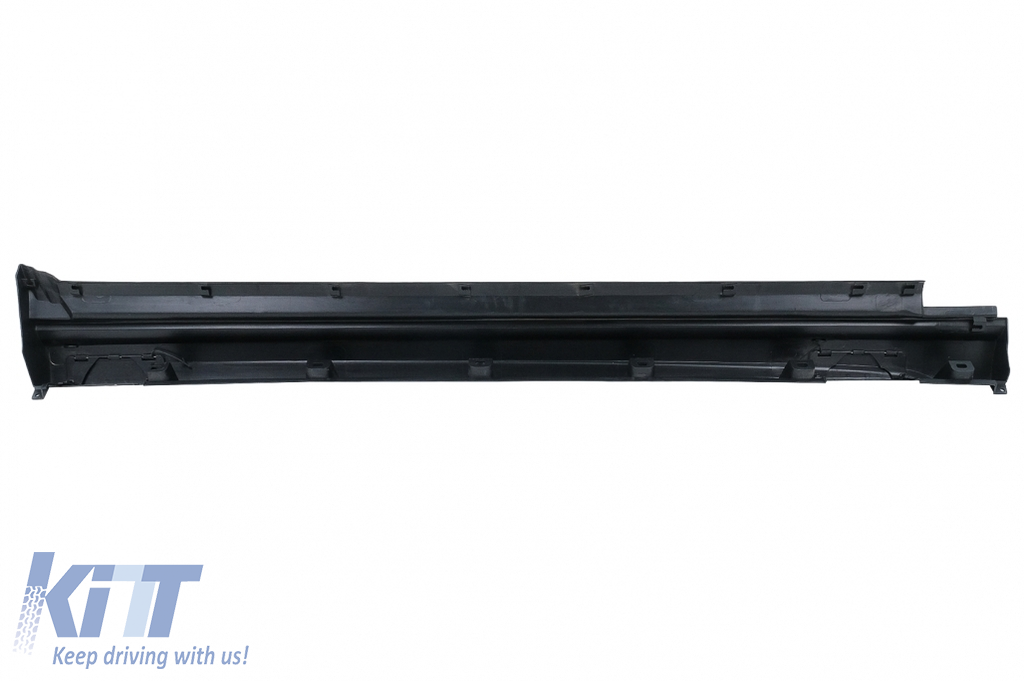

Side Skirts Autobiography Design
Rear Bumper Autobiography Design equipped with air diffuser and muffler tips
Side Vents Autobiography Desig
Front and rear bumper are equipped with holders for PDC (parking sensors)
Facelift Design Headlights Range Rover Vogue equipped with LED Daytime Running Lights.
-Bi-Xenon Low/High Beam
-Turn Signal Lights LED
-Position Light LED
Are not equipped with auto leveling module and motor.
Headlights are not equipped with cornering function.
Range Rover Vogue Facelift LED Taillights
Position Light: LED
Brake Light: LED
Turning Light: LED
Fog Light: Halogen Bulb
Reverse Light: halogen Bulb
Color: Red/Black with clear glass.
Piano Black Interior
Front and rear bumper crafted in high quality PP (polypropylene), ready for painting operation (primed)
Central and side grilles made of high quality ABS plastic with graphite grey, chrome and silver finish

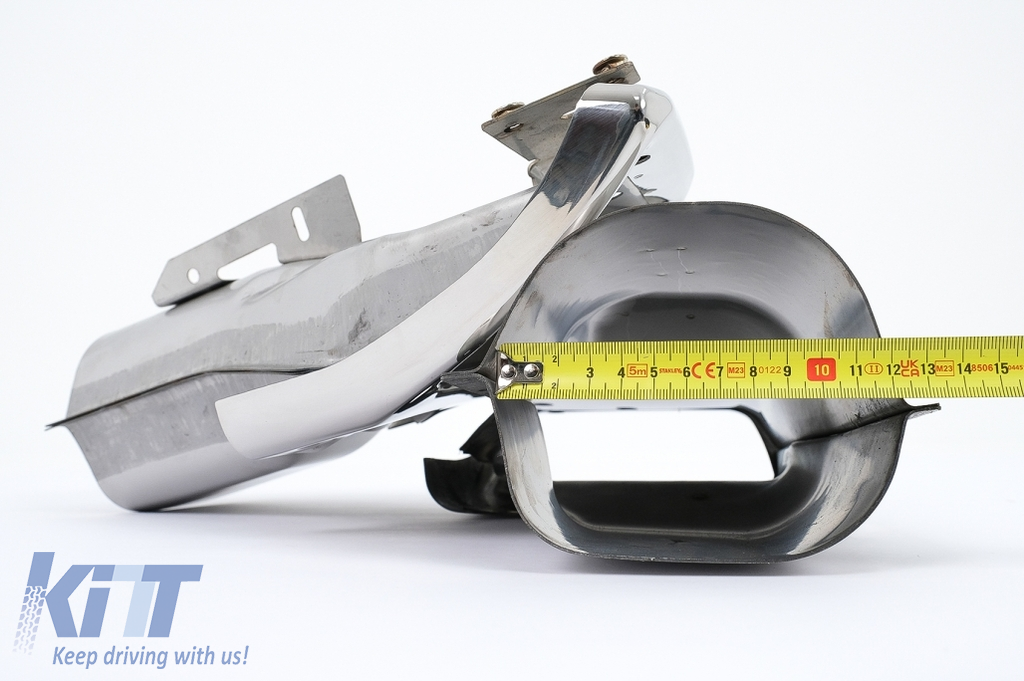

Muffler tips crafted in high quality stainless steel.
Fitting and Installation
Fitting instructions not included.
Installation in an authorized car service is highly recommended.
For Vogue 2006-2009 the additional parts required are:
Fog lights
Headlights washer jets
PDC Parking Sensor
Adaptor Conversion Wire for PDC Parking Sensor
Headlights Bracket 1x BRHLRL322
Front bumper/wing Bracket 1x BRFFRL322
For Vogue 2002-2005 the additional parts required are:
Headlights 2010 model (rewiring needed)
Fog lights
Headlights washer jets
PDC Parking Sensor
Adaptor Conversion Wire for PDC Parking Sensor
Headlights Bracket
Front bumper/wing Bracket
Taillights 2010 model
Modifications to wings, front bumper carrier, modifications to the bracket from the wing to bumper
* You can find the parts in our store
* without being limited at
Package Contains
Front Bumper
Rear Bumper
Side Skirts
Muffler Tips
Central Grille
Side Grilles
One set of Headlights (left-right)
One set of taillights.
Package dimensions
Length (cm): 210
Width (cm): 55
Height (cm): 90
Weight (kg): 50
Certificates
Product without E-mark/ABE/TUV.
These are high quality aftermarket parts.
